ICV 13T - 14T

SPECIFICATIONS

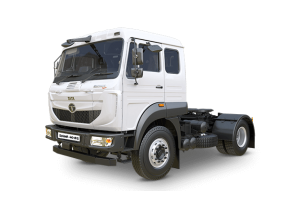

TATA SIGNA 4018.S/LPS 4018 BS6

PRODUCT DETAILS

Model

• TATA SIGNA 4018.S/LPS 4018 BS6

Weight

• Gross Vehicle Weight : 39500 kg

Engine

• Engine : Cummins ISBe 5.6L BS6
• Max Power : 139 Kw @ 2300 r/min
• Max Torque : 850 Nm @ 1000 - 1600 r/min

Clutch

• Clutch : 380 mm Dia Push type Single Plate Dry Friction Organic Lining

Transmission

• Transmission : TATA G950 6F + 1R Manual Synchromesh

Axle

• Front Axle : TATA Heavy Duty 7T Reverse Elliot Type
• Rear Axle : TATA Single Reduction RA110LD

Frame

• Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 7)

Suspension

• Suspension : Parabolic leaf at front Semi elliptical multi leaf spring

CAB/COWL

• CAB/COWL : SIGNA SLEEPER CABIN and Cowl option

Tyres

• Tyres : 295/90R20 Radial Tube Tyres

Ventilation

• Ventilation : Blower & AC options

Emission Control

• Emission Control : DOC + DPF + SCR + AMOX

Fuel Tank

• Fuel tank : Polymer 365 l & 557 l (365 l+192 l) with Anti Fuel Theft

Options

• GCW : 39500 Kg
• Skeletal : 7m | 12m | Rigid Axle | Lift Axle
• Flat Bed : 7m | 12m | Rigid Axle | Lift Axle

WHEELBASE & APPLICATION

Wheelbase

• Wheelbase Option : 3320 mm

Application

• Cement | LPG Tankers | Iron Flat Sheets
• Fly Ash | Agro | Coal
• Volumetric ODCs | Steel Coils, Bars | Marbles/Tiles

SERVICE SCHEDULE & WARRANTY

ODI | Interval

• Engine : 80K Km (1st @ 40K Kms)
• Gear Box : 160K Km (1st @ 1.2L Kms)
• Rear Axle : 160K Km (1st @ 1.2L Kms)
• Hub Grease : 160K Km (1st @ 1.2L Kms)

Warranty

• Driveline Warranty : 6 Year | 6 L Km

TATA SIGNA 4018.S is most preferred Tractor in its segment, the TATA SIGNA 4018.S BS6 range is pitched to heighten bar of customer's experience and improving operating economics based on unique customer proposition of POWER OF 6

• Power of Enhanced Performance
• Power of Total Cost of Ownership
• Power of Comfort and Convenience
• Power of Choice
• Power of Connectivity
• Power of Total Peace of Mind

To begin with, it offers higher power to weight ratio and higher torque at wheels delivering higher performance and clinically designed driveline with Cummins ISBe 5.6L engine with 3 mode FE switch and G950 6S gear box offering higher fuel efficiency. This new range of vehicle comes with new range of value enhancers like Gear shift advisor, tilt & telescopic steering column that provide an excellent trucking experience. The SIGNA 4018.S comes with CX and LX variants featuring world class performance and safety features like, Hill start assist, Truck hub unit, Engine Brake which enhances your TCO, and a comprehensive new generation Connected Vehicle Solutions encompassing the entire gamut of business.

The smartly designed cabin space, improved ergonomics and NVH levels in the Signa range offer a superior in-cab experience. The cabins also come with AC and ventilation options, enabling drivers to operate fatigue free over long hauls, leading to better productivity.

SPECIFICATIONS

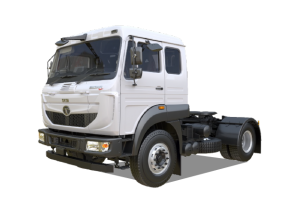

TATA SIGNA 4021.S BS6

PRODUCT DETAILS

Model

• TATA SIGNA 4021.S BS6

Weight

• Gross Combination Weight : 39500 kg

Engine

• Engine : TATA New Gen 5L Turbotronn
• Max Power : 147 Kw @ 2200 r/min
• Max Torque : 850 Nm @ 1100 - 1600 r/min

Clutch

• Clutch : 380 mm Dia Push type Single Plate Dry Friction Organic Lining

Transmission

• Transmission : TATA G950 6F + 1R Manual Synchromesh

Axle

• Front Axle : TATA Heavy Duty 7T Reverse Elliot Type
• Rear Axle : TATA Single Reduction RA110LD

Frame

• Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 7)

Suspension

• Suspension : Parabolic leaf at front Semi elliptical multi leaf spring at rear

CAB/COWL

• CAB/COWL : SIGNA REFRESH SLEEPER CABIN

Tyres

• Tyres : 295/90R20 Radial Tube Tyres

Ventilation

• Ventilation : Blower & AC options

Emission Control

• Emission Control : EGR + DOC + DPF + SCR

Fuel Tank

• Fuel tank : Polymer 365L with Anti Fuel Theft

WHEELBASE

Wheelbase

• Wheelbase Option : 3320 mm

Presenting a grand addition to the 40 tonne tractor segment, the Tata Signa 4021.S, with an improvised driveline, optimised performance and lower total cost of ownership. Powered by a Tata New Gen 5L Turbotronn engine that delivers higher power and torque, this vehicle is ready for rated load across countless applications, be it the auto-logistics industry, steel flatbed, industrial goods transport, and port logistics,amongst others.

Give your business the Tata Signa 4021.S advantage:

• The power of performance - Tata New Gen 5L Turbotronn Engine that boasts high power and torque
• The power of lower total cost of ownership - Multi-mode FE Switch, Gear Shift Advisor, Engine Brake
• The power of comfort and convenience - Hill Start Aid, Suspended cab, adjustable seat and 4 spoke new Tilt & Telescopic steering , 17.78 cm (7") infotainment and air conditioning
• The power of choice - CX, LX Variants, Range of FBVs available
• The power of connectivity - New Fleet Edge Telematics and Electronic AFT
• The power of total peace of mind - 6 year/6 lakh warranty, Customised AMC, Tata Sampoorna Seva 2.0

With a robust build, superior aggregates and the stylish Signa cabin to combine with the unique features of the Tata Signa 4021.S, you couldn't ask for a more reliable partner for your heavy commercial vehicle application business or fleet.
