Model
T.9 ULTRA DCR39CBC 125B6M5 BS6 Phase 2
1012 LPT DCR45CBC 125B6M5 BS6 Phase 2
1012 LPT DCR45HSD 125B6M5 BS6 Phase 2
1012 LPT DCR39CBC 125B6M5 BS6 Phase 2
1012 LPT DCR39HSD 125B6M5 BS6 Phase 2
T.9 ULTRA DCR39HSD 125B6M5 BS6 Phase 2
To give your business the new-heights & best-performing truck and assist you with running a difficulty-free and sturdy truck, Tata Motors is doing almost everything to bring you a value for money product. It is obvious with high-quality aggregates and power-train, and Tata Motors guarantees that the truck you're purchasing has a new and contemporary contribution to run it successfully over an extensive stretch. The TATA LPT 1918 Cummins accompanies a demonstrated Cummins ISBe 5.6 BS6 180 engine. To start with, clearly, the power-train decides the force and productivity you're probably going to get from this truck. It produces 180hp of force at an astounding 850 Nm of force and is tuned to a recognizable standard TATA G750 manual synchromesh gearbox.
Highlights of Tata LPT 1918 Cummins Bs6 Cowl
Tata LPT trucks are the core vehicles of Tata commercial vehicles. The trucks are in effect continually updated, refined and advanced into a profoundly fruitful Tata LPT series. TATA LPT 1918 CUMMINS BS6 COWL is one of the most trusted business assets for any medium haulage customer in the country. The powerful, efficient, and robust truck, TATA LPT 1918 advances toward BS6 with a significant upgrade. This medium duty Truck is designed on the unique customer proposition of POWER OF 6 -
- Total Peace of Mind
- Total Cost of Ownership
- Enhanced Performance
- Connectivity
- Comfort and Convenience
- Choice
What Makes Tata LPT 1918 Cummins Bs6 Cowl Reliable?
Following are the specifications that make TATA LPT 1918 CUMMINS a powerful truck -
- Weight - Gross Vehicle Weight - 18500 kg
- Engine - Cummins ISBe 5.6 L BS6 180HP
- Max Power - 139 Kw @ 2300 r/min
- Max Torque - 850 Nm @ 1000 - 1600 r/min
- Clutch - 380 mm Dia Push type Single Plate Dry Friction Organic Lining
- Transmission - TATA G750 6F + 1R Manual Synchromesh
- Front Axle - TATA Extra Heavy Duty 7T Reverse Elliot Type
- Rear Axle - TATA Single Reduction RA109RR
- Frame - Ladder Type, Heavy Duty Frame | (285 x 65 x 6)
- CAB/COWL - Cowl
- Tyres - 295/90R20 Radial Tube Tyres
- Ventilation -Blower
- Emission Control - DOC + DPF + SCR + AMOX
- Fuel Tank - 365 L Polymer with Anti Fuel Theft (Twin Fuel Tank in LWB)
- Deck Length Option - 5486 mm | 9754 mm
- WB (mm) - 4225 | 6787
- Span (mm) - 5486 | 9754
- Wheelbase Option - 4255 mm | 6787 mm
- 4225 - Cement Sand | Agri | Poultry | Packed LPG - 306 | Municipal
- 6787 - White Goods | FMCG | E-Com | Reefer | 2W-Carrier | Parcel & Courier
- Engine - 80K Km (1st @ 40K Kms)
- Gear Box - 160K Km (1st @ 1.2L Kms)
- Rear Axle - 160K Km (1st @ 1.2L Kms)
- Hub Grease - 160K Km (1st @ 1.2L Kms)
- Driveline Warranty - 6 Year | 6 L Km

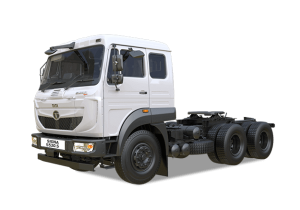

SPECIFICATIONSTATA SIGNA 5530.S BS6
PRODUCT DETAILS
Model
- TATA SIGNA 5530.S BS6
Weight
- GROSS COMBINATION WEIGHT : 55,000 Kg
Engine
- Engine : Cummins ISBe 6.7L BS6
- Max Power : 224 Kw @ 2300 r/min
- Max Torque : 1100 Nm @ 1100 - 1700 r/min
Clutch
- Clutch : 430 mm Dia Push type Single Plate Dry Friction Organic Lining
Transmission
- Transmission : TATA G1150 8F +1C + 1R Manual Synchromesh
Axle
- Front Axle : TATA Heavy Duty 7T Reverse Elliot Type
- Rear Axle : TATA Single Reduction 21T RA109 SRT Tandem Axle
Frame
- Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 7)
Suspension
- Suspension : Parabolic leaf at front Bogie suspension | Bell Crank Suspension at Rear
CAB/COWL
- CAB/COWL : SIGNA SLEEPER CABIN
Tyres
- Tyres : 295/90R20 Radial Tube Tyres
Ventilation
- Ventilation : Blower & AC options
Emission Control
- Emission Control : DOC + DPF + SCR + AMOX
Fuel Tank
- Fuel tank : Polymer 365 l & 557 l (365 l+192 l) with Anti Fuel Theft
Options
- Flat Bed : 12m
- Side Wall : 10 m (3/4 ft SW) | 10.4 m (4/5/6 ft SW)
- Tip Trailer : 24 | 26 | 32 | 36 CuM
- Bulker : 40 CuM
- SLB : 12.2 | 12.5 m
WHEELBASE & APPLICATION
Wheelbase
- Wheelbase Option : 3890 mm
Application
- Cement | Flyash
- Clinker | Limestones
- Agro
- Steel coils, flats, bars
- Marvel / Tiles/ Stones
- ODCs
- LPG/Chemical Tankers
- Const. Agg.
- CKDs
- Coal
SERVICE SCHEDULE & WARRANTY
ODI | Interval
- Engine : 80K Km (1st @ 40K Kms)
- Gear Box : 160K Km (1st @ 1.2L Kms)
- Rear Axle : 160K Km (1st @ 1.2L Kms)
- Hub Grease : 160K Km (1st @ 1.2L Kms)
Warranty
- Driveline Warranty : 6 Year | 6 L Km
TATA M&HCV 55T Tractors BS6 range of vehicles are designed to heighten the bar of customer's experience and improving operating economics based on unique customer proposition of POWER OF 6
- Power of Enhanced Performance
- Power of Total Cost of Ownership
- Power of Comfort and Convenience
- Power of Choice
- Power of Connectivity
- Power of Total Peace of Mind
TATA SIGNA 5530.S significant better power to weight ratio with its powerful Cummins ISBe6.7L engine "Cummins largest selling engine in the world" delivering 300HP and 1100Nm torque enabled with 3 mode fuel economy switch and Gear shift advisor which delivers you the unmatched fuel economy in various applications. SIGNA 5530.S is equipped with proven G1150 9S transmission with a big 430 dia. organic clutch that ensure smooth and efficient power transfer for better performance.
The SIGNA 5530.S comes with CX and LX variants featuring world class performance and safety features like, Hill start assist, Truck hub unit, Engine Brakes etc. to give you unmatched performance.
The smartly designed cabin space, improved ergonomics and NVH levels in the SIGNA range offer a superior in-cab experience. The cabins also come with AC and ventilation options, enabling drivers to operate fatigue free over long hauls, leading to better productivity.
SPECIFICATIONS

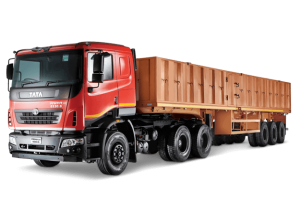

TATA PRIMA 5530.S BS6
PRODUCT DETAILS
Model
- TATA PRIMA 5530.S BS6
Weight
- GROSS COMBINATION WEIGHT : 55,000 Kg
Engine
- Engine : Cummins ISBe 6.7L BS6
- Max Power : 224 Kw @ 2300 r/min
- Max Torque : 1100 Nm @ 1100 - 1700 r/min
Clutch
- Clutch : 430 mm Dia Push type Single Plate Dry Friction Organic Lining
Transmission
- Transmission : TATA G1150 8F +1C + 1R Manual Synchromesh
Axle
- Front Axle : TATA Heavy Duty 7T Reverse Elliot Type
- Rear Axle : TATA Single Reduction 21T RA109 SRT Tandem Axle
Frame
- Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 7)
Suspension
- Suspension : Parabolic leaf at front Bogie suspension | Bell Crank Suspension at Rear
CAB/COWL
- CAB/COWL : PRIMA SLEEPER CABIN
Tyres
- Tyres : 295/90R20 Radial Tube Tyres
Ventilation
- Ventilation : Standard AC Cabin
Emission Control
- Emission Control : DOC + DPF + SCR + AMOX
Fuel Tank
- Fuel tank : Polymer 557L (365L + 192L) with Anti Fuel Theft
Options
- Flat Bed : 12m
- Side Wall : 10 m (3/4 ft SW) | 10.4 m (4/5/6 ft SW)
- Tip Trailer : 24 | 26 | 32 | 36 CuM
- Bulker : 40 CuM
- SLB : 12.2 | 12.5 m
WHEELBASE & APPLICATION
Wheelbase
- Wheelbase Option : 3890 mm
Application
- Cement | Flyash
- Clinker | Limestones
- Agro
- Steel coils, flats, bars
- Marvel / Tiles/ Stones
- ODCs
- LPG/Chemical Tankers
- Const. Agg.
- CKDs
- Coal
SERVICE SCHEDULE & WARRANTY
ODI | Interval
- Engine : 80K Km (1st @ 40K Kms)
- Gear Box : 160K Km (1st @ 1.2L Kms)
- Rear Axle : 160K Km (1st @ 1.2L Kms)
- Hub Grease : 160K Km (1st @ 1.2L Kms)
Warranty
- Driveline Warranty : 6 Year | 6 L Km
TATA M&HCV 55T Tractors BS6 range of vehicles are designed to heighten the bar of customer experience and operating economics, based on the unique proposition of POWER OF 6.
- Power of Enhanced Performance
- Power of Total Cost of Ownership
- Power of Comfort and Convenience
- Power of Choice
- Power of Connectivity
- Power of Total Peace of Mind
TATA PRIMA 5530.S delivers significantly better power to weight ratio with its powerful Cummins ISBe6.7L engine (largest selling engine in the world) delivering 300HP and 1100Nm torque.
It is enabled with fuel intelligent features such as 3 mode fuel economy switch and Gear shift advisor which delivers you the unmatched fuel economy in various applications.
PRIMA 5530.S is equipped with proven G1150 9S transmission with a big 430 dia. organic clutch that ensures smooth and efficient power transfer for better performance.
The PRIMA 5530.S comes in the LX variant, featuring world class performance and safety features such as Hill start assist, Truck hub unit, Engine Brakes etc. to give you unmatched driving comfort.
The smartly designed cabin space with world-class ergonomics and NVH levels enables a superior in-cab experience. The cabins also come with AC as a standard fitment, enabling drivers to operate fatigue-free over long hauls, leading to better productivity.
