ICV 17T - 18T
Model
TATA SIGNA 5525.S 4X2 BS6
TATA SIGNA 5530.S 4X2 BS6
T.18 ULTRA SLR49CBC 180B6M6 BS6 Phase 2
T.18 ULTRA SLR49HSD 180B6M6 BS6 Phase 2
1816 LPT DCR49CBC 155B6M5 BS6 Phase 2
1816 LPT DCR45CBC 155B6M5 BS6 Phase 2
1816 LPT DCR49HSD 155B6M5 BS6 Phase 2
1816 LPT DCR45HSD 155B6M5 BS6 Phase 2
T.18 ULTRA SLR56CBC 180B6M6 BS6 Phase 2
The Tata LPK 2518 comes laden with a Cummins ISBe 5.9 180 40 engine to complies with BS IV production systems. The engine is competent of producing the highest yield of 134 kW @ 2500 r/min including a peak torque of 700 Nm @ 1500 r/min. The heavy-duty engine capability is 5883 cc. The fuel tank competence is 300 litres while the GVW of the motor vehicle stands at 25000 kg
TIPPER TRUCK MODEL-
• FOUR TONNERS
• NINE TONNERS
FEATURES OF TATA TIPPERS
Tata tippers provide strong achievement on rough roads. They are the paramount invention and encompass the capability to stand on adverse road conditions. They own complex instrument cluster, comfortable cabin to give the driver a safe drive. The truck heart on drivers reassures and safety. It comes with a reasonable price with next-generation performance. Our tipper range is available in the semi-forward and full-forward categories. They have the best set-up, power steering, an efficient braking system, and best-built body.
UNIQUE IN DESIGN
The unique design of PTO driven hopper allows discharging garbage nonstop inside the compactor and do well his job at clever dumping sites.
SUITS SPECIFIC NEEDS
It is built to suit specific needs with capacities ranging from 2.5 cubic meters to 16 cubic meters. It suits specific needs in the transportation of construction materials.
INCREDIBLE AFFABLE MODALS AVAILABLE
It comes with efficient solutions in light commercials, improved tires, better drivability, and stunning designs.
RANGE OF TATA TIPPERS TRUCKS AT PASCO MOTORS
Pasco Motors created its union with Tata Motors in the year 1967. Pasco Motors has been a top dealer of its business vehicles all over North India. The range of Tata Tippers Trucks can be seen in the various showrooms located in the different parts of the Northern region. We offer a different range of Trucks, heavy-duty vehicles and light-duty vehicles with the support of a long life guarantee with our services. Our customer communication is so well built that they are converted into our family. All facility will be given to them to make them successful in missions. We cultivate the future of bright and successful entrepreneurs.

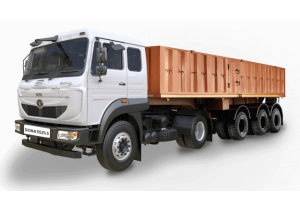

SPECIFICATIONSTATA SIGNA 5525.S 4X2 BS6
PRODUCT DETAILS
Model
- TATA SIGNA 5525.S 4X2 BS6
Weight
- GROSS COMBINATION WEIGHT : 51,000 Kg | 52,000 Kg | 53,000 Kg| 54,000 Kg | 55,000 Kg
Engine
- Engine : Cummins ISBe 6.7L BS6
- Max Power : 186 Kw @ 2300 r/min
- Max Torque : 950 Nm @ 1000 - 1800 r/min
Clutch
- Clutch : 430 mm Dia Push type Single Plate Dry Friction Organic Lining
Transmission
- Transmission : TATA G1150 8F + 1C + 1R Manual Synchromesh
Axle
- Front Axle : TATA Heavy Duty 7T Reverse Elliot Type
- Rear Axle : TATA Single Reduction RA110
Suspension
- Suspension : Parabolic leaf at front | Semi elliptical multi leaf spring
Frame
- Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 7)
CAB/COWL
- CAB/COWL : SIGNA SLEEPER CABIN
Tyres
- Tyres : 295/90R20 Radial Tube Tyres
Ventilation
- Ventilation : Blower & AC options
Emission Control
- Emission Control : DOC + DPF + SCR + AMOX
Fuel Tank
- Fuel tank : Polymer 365L with Anti Fuel Theft
WHEELBASE & APPLICATION
Wheelbase
- Wheelbase Option : 3320 mm
TATA SIGNA 5525.S is India's first 4x2 tractor with 55T GCW. With extra payload, extra earnings, and extra profits, it is designed to raise the bar of customer experience with improved operating economics based on the unique customer proposition known as THE POWER OF 6.
- Power of Enhanced Performance
- Power of Total Cost of Ownership
- Power of Comfort and Convenience
- Power of Choice
- Power of Connectivity
- Power of Total Peace of Mind
Tata Signa 5525.S is powered with Cummins ISBe6.7L engine, which is the "largest selling commercial engine in the world" delivering 250HP and 950Nm torque enabled with 3 Mode Fuel Economy Switch and Gear Shift Advisor, which delivers you unmatched fuel economy in its segment.
The powerful tractor is equipped with heavy duty, industry-proven aggregates i.e RA 110 axle with enhanced Torque at Wheel and G1150 9 speed transmission with a big 430 dia. organic clutch that ensures smooth and efficient power transfer for better performance.
Signa 5525.S offers multiple GCW nodes 51T | 52T | 53T | 54T & 55T with appropriate trailer combinations and also comes with CX and LX variants featuring world-class performance and safety features such as Hill Start Assist, Truck Hub Unit, Engine Brakes etc.
The smartly designed cabin space, improved ergonomics and NVH levels in the SIGNA range offer a superior in-cab experience. The cabins also come with Powerful AC with Ambient Air Temperature sensor and ventilation options, enabling drivers to operate fatigue free over long hauls, leading to better productivity.
SPECIFICATIONS

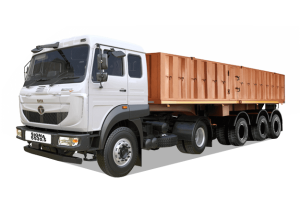

TATA SIGNA 5530.S 4X2 BS6
PRODUCT DETAILS
Model
- TATA SIGNA 5530.S 4x2 BS6
Weight
- GROSS COMBINATION WEIGHT : 51,000 Kg | 52,000 Kg | 53,000 Kg| 54,000 Kg | 55,000 Kg
Engine
- Engine : Cummins ISBe 6.7L BSVI
- Max Power : 224 Kw @ 2300 r/min
- Max Torque : 1100 Nm @ 1100 – 1700 r/min
Clutch
- Clutch : 430 mm Dia Push type Single Plate Dry Friction Organic Lining
Transmission
- Transmission : TATA G1150 8F +1C + 1R Manual Synchromesh
Axle
- Front Axle : TATA 7T Reverse Elliot Type
- Rear Axle : TATA Heavy Duty Single Reduction RA114
Frame
- Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 7)
Suspension
- Suspension : Parabolic leaf at front | Semi elliptical multi leaf spring
CAB/COWL
- CAB/COWL : SIGNA SLEEPER CABIN
Tyres
- Tyres : 295/90R20 Radial Tube Tyres
Ventilation
- Ventilation : Blower & AC options
Emission Control
- Emission Control : DOC + DPF + SCR + AMOX
Fuel Tank
- Fuel tank : Polymer 365L & 557L (36L + 192L) with Anti Fuel Theft
WHEELBASE
Wheelbase
- Wheelbase Option : 3320 mm
Say hello to the new TATA Signa 5530.S, enhanced with the Power of 6 — enhanced performance, lower operational costs, added comfort and convenience, advanced connectivity, increased choice and total peace of mind. This 4x2 tractor trailer is designed to deliver on the needs of heavy duty applications across the transportation, construction and development industries, with its superior functionality and features.
The Power of 6:
- Power of Enhanced Performance
- Power of Lower Total Cost of Ownership
- Power of Comfort & Convenience
- Power of Connectivity
- Power of Choice
- Power of Total Peace of Mind
The Signa 5530.S 4x2 is equipped with Cummins ISBe 6.7L engine, the largest selling engine in all the world, that delivers an impressive 300 HP and 1100 Nm torque. This means better pickup in all conditions as well as an excellent load pulling capability assuring heavy duty performance with all load types in different terrain. The engine is designed with a two stage Fuel Filter for optimised usage and electronic viscous fan for greater fuel savings. Features like a 3 mode Fuel Economy Switch, Gear Shift Advisor, Load Based Speed Control and Vehicle Acceleration Management further improve fuel economy. Owners can rest assured that the Signa 5530.S 4x2 is hassle-free and affordable to maintain. It's 430 mm diameter single plate dry frictional pull type clutch is organically lined for a longer lifespan, covering up to 200K km before needing a fluid change.
The Signa 5530.S 4x2 is configured with RA114 rear axle having loading design capacity of 13.5T further enhancing the reliability experience. This axle is oil lubricated, hence requires no greasing for life. Plus the rear axle ratio is optimised in such a way that it deliver higher fuel economy . Basically It is designed so as to have best of both worlds i.e. best in class performance & lower total cost of operation
The ergonomically designed Signa cabin offers comfort, convenience and safety. The latest variant boasts a new steering wheel, washable trims, PO6 decal, front head box enhancing utility space and twin LED roof lamps in CX variant and additionally 7'' infotainment with speakers, switches on steering wheel in LX variant, in addition to the 4-way adjustable mechanically suspended seat, air conditioning, 4-point cabin suspension with vertical and traverse shockers, accessible dashboard and control panel, that make journeys driver-friendly thereby increasing productivity.
The Signa 5530 is the leading 4x2 tractor trailer for its comprehensive offerings geared towards outstanding performance and profitability, while keeping costs to a minimum.
